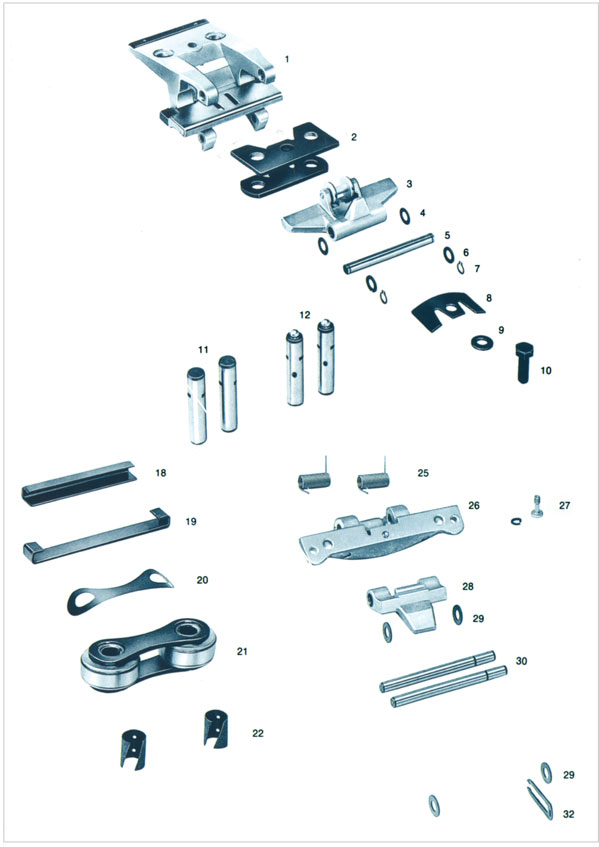

01
02
03
04
05
06
07
08
09
10
11
12
13+14
18
19
20
21P
21H
22P
22H
25
26
27
28
29
30
32 |
|
Clip-body
Guide-part
Toggle
Washer
Pin for Toggle
Washer
Circlip Seeger
Slide plate
Ondulated washer
Setscrew
Chain bolts
Chain bolts
Pin link top part with bow
Slide plate
Slide plate
Spring Blade
Connecting link with bearings
and synthetic bushes
Complete connecting link with ball
bearings directly lubricated
Synthetic bushes (not represented)
Long term synthetic bushes for Complete connecting
link with ball bearings directly lubricated
Spring
Pin plate carrier
Screw with spring washer
Lock latch
Washer
Pins
Clamp |
